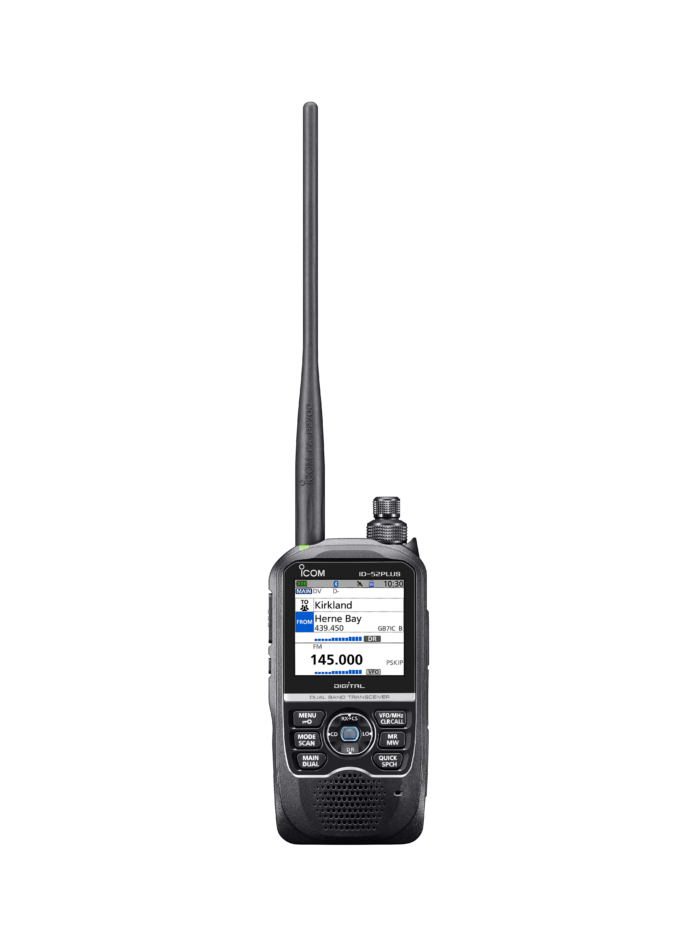

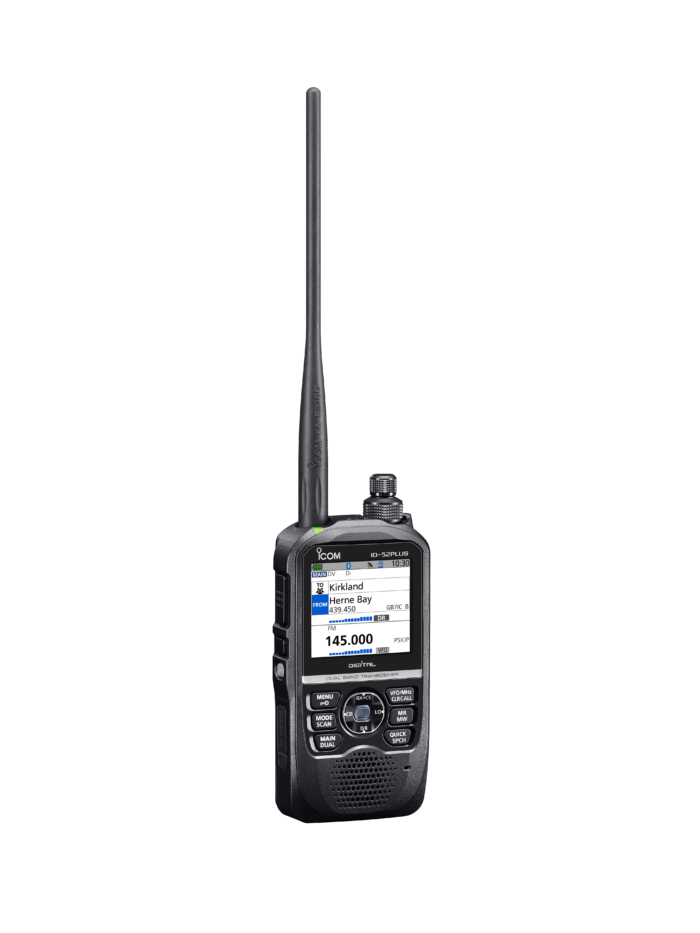

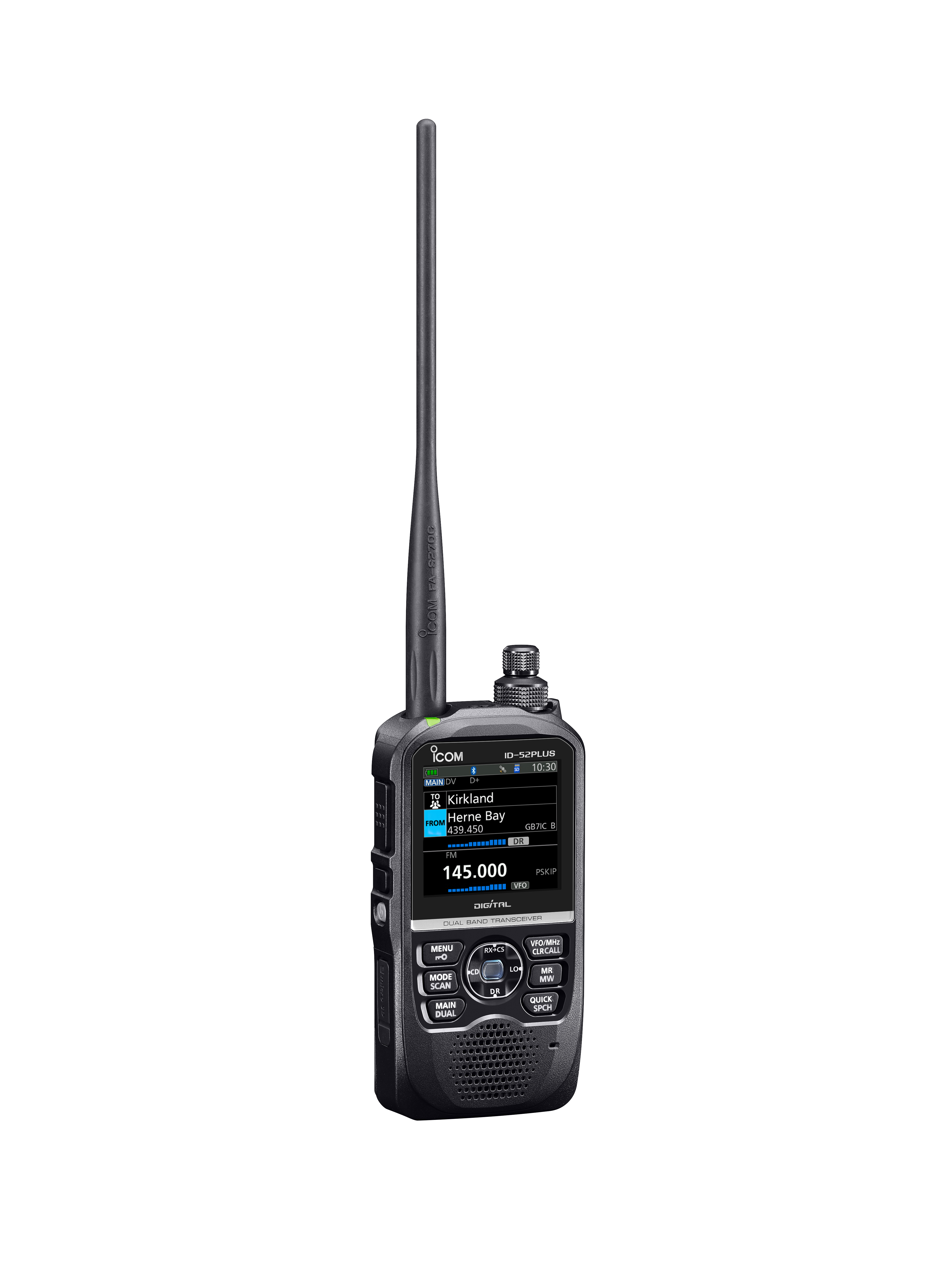

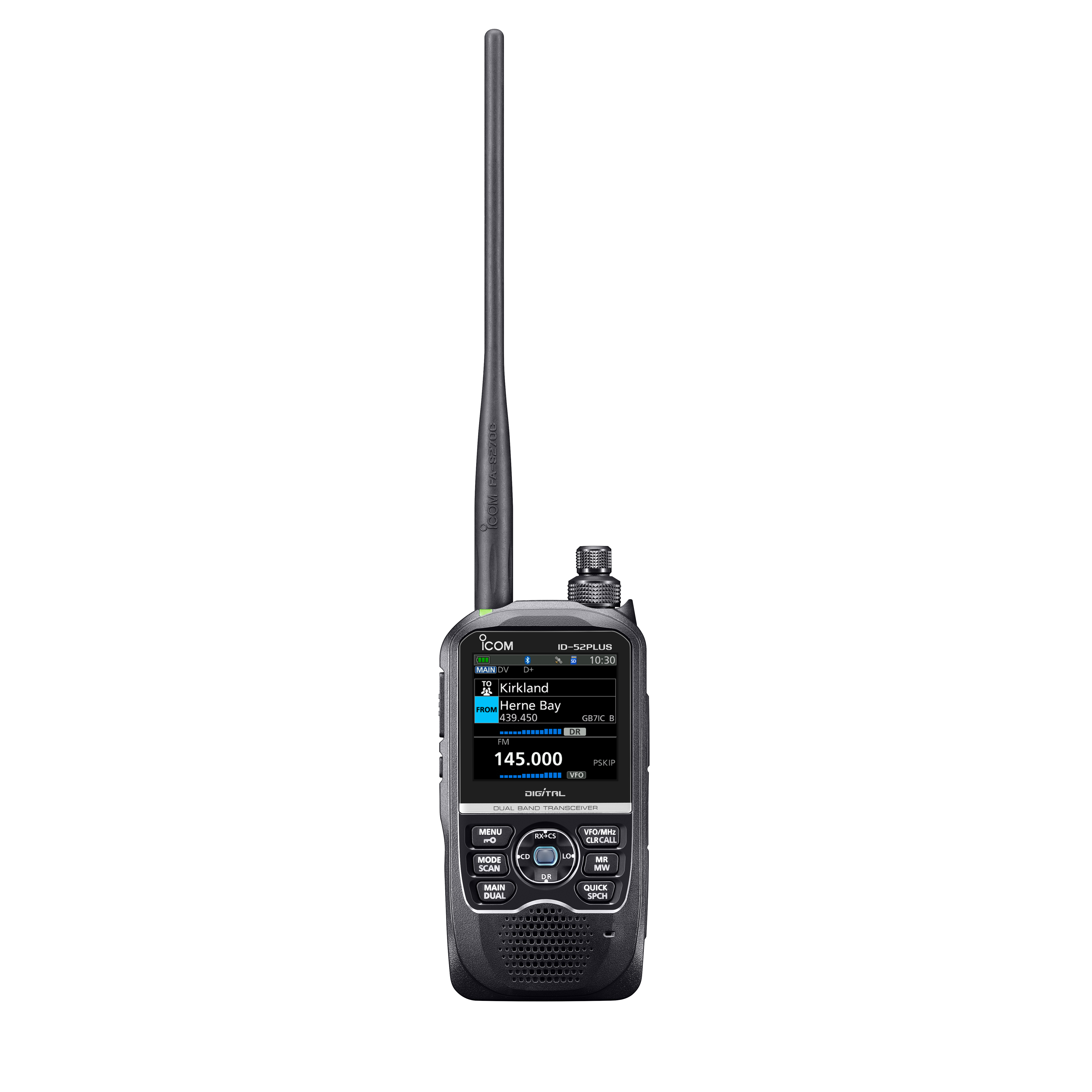

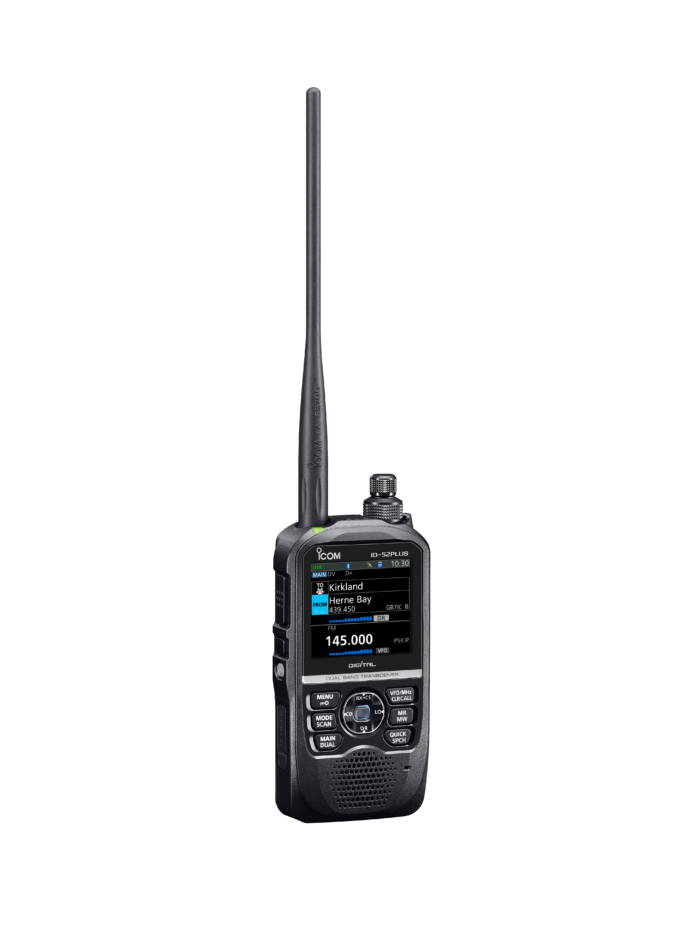

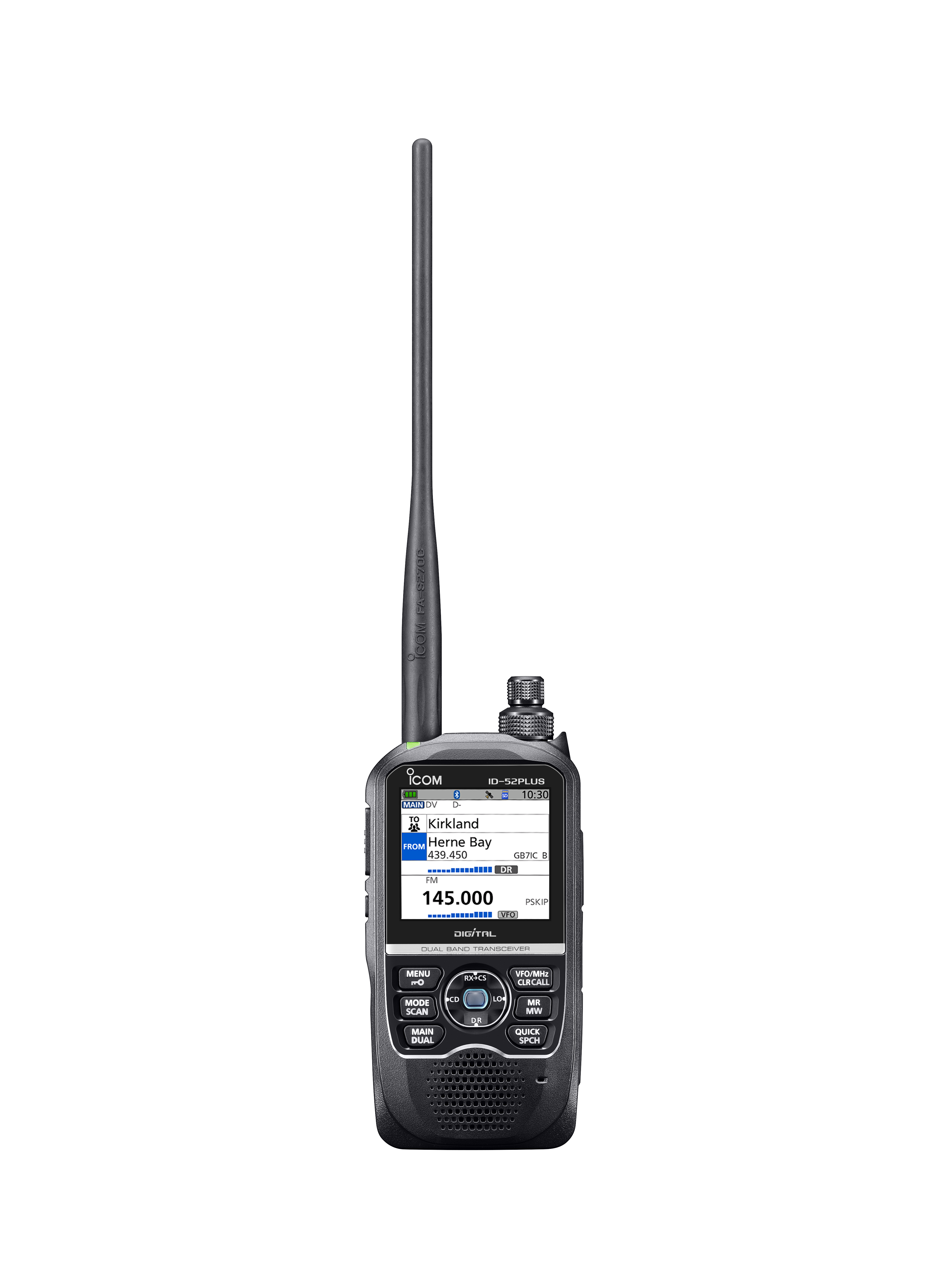

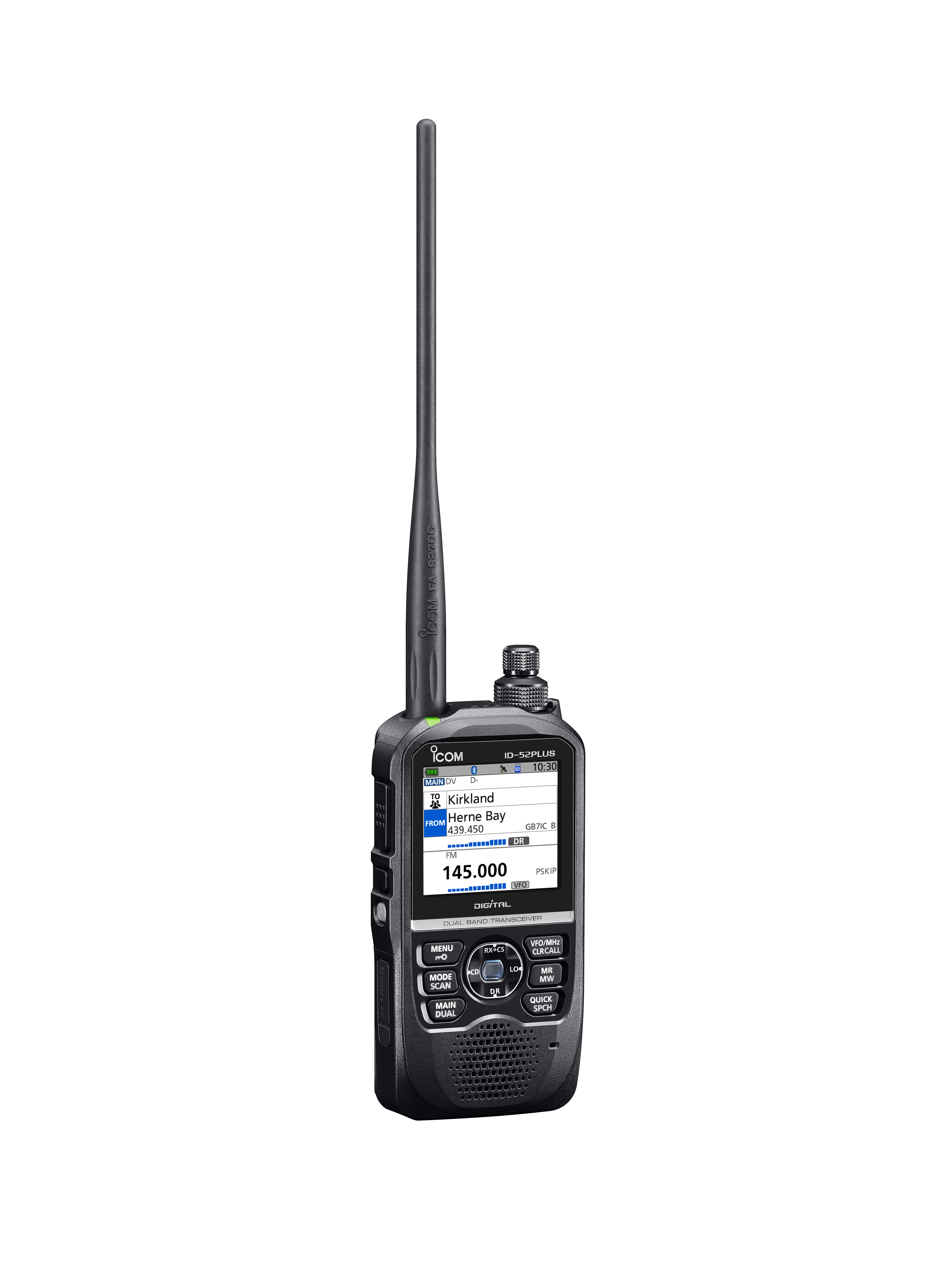

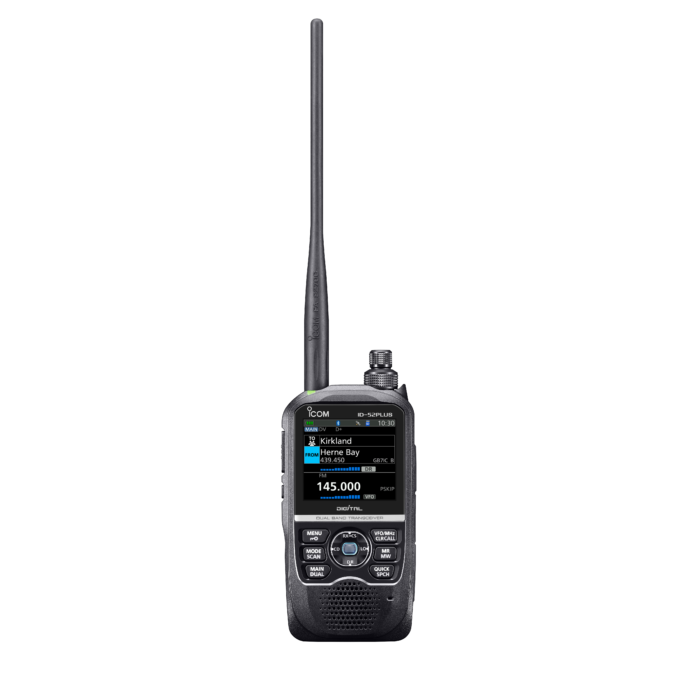

ID-52E PLUS

ID-52E PLUS

660,40 UVP inkl. MwSt.

VHF/UHF DIGITAL TRANSCEIVER

Level Up Your Digital Experience
with Enhanced Bluetooth® Functionality

Description

Usability Has Been Empowered.
Multifunctional Digital Transceiver with DV and FM Dual Mode.

The popular ID-52E D-STAR transceiver just gets more useful. Terminal mode and Access Point mode, which previously required a cable connection, can now connect to an Android™ device via Bluetooth® technology. In addition, dual operation of Terminal mode and Simplex/Repeater operations is now possible. Moreover, an industry standard USB Type-C™ port for convenient USB Type-C™ charging is newly adopted. Experience all the advantages with the ID-52E PLUS and enjoy stable long-distance communication using the internet connected D-STAR digital repeater network.

Multifunctional Digital with DV and FM Dual Mode

Worldwide Communication Through the D-STAR Network

The ID-52E PLUS is a VHF/UHF dual band radio with D-STAR (Digital Smart Technologies for Amateur Radio) and FM dual mode functions. The ID-52E PLUS supports conventional FM communications as well as D-STAR simplex, repeater, regional, and worldwide calls over the D-STAR Internet gateway. With the ID-52E PLUS, you can call a friend in another city, or even internationally through D-STAR repeaters, with digital clear audio. In addition, the ID-52E PLUS can send digital voice with data, text messages, GPS location information and pictures.

Share Picture Function – A Picture is Worth a Thousand Words

You can share pictures with other users and see received pictures on the colour display (DV mode). Pictures taken on a smart device can be wirelessly transferred to the ID-52E PLUS through Bluetooth® connection. Enjoy sharing pictures together with voice messages.

*The Share Picture function requires the optional picture utility software ST-4001A (on Google Play™), ST-4001I (on App Store) or ST-4001W (Download from Icom website) picture utility software. The ST-4001W requires a microSD card or a USB cable to transfer pictures.



DR (D-STAR Repeater) Function

The expanded DR (D-STAR Repeater) function makes D-STAR and FM repeater communication easier to use. Combined with the GPS function, selection of an available local repeater is available with a couple of button pushes, based on your location. Additionally, DR mode supports reflector linking controls.


DR screen



Wireless Connection Via Bluetooth® with an Android™ Device Even When Using Terminal Mode and Access Point Mode

While the previous ID-52E required a cable connection, the ID-52E PLUS can now connect wirelessly to an Android™ device over Bluetooth® connection in the Terminal mode and Access Point mode. By connecting to an Android device with the RS-MS3A app, D-STAR communication is possible through a cellular phone. You can smoothly start Terminal mode and Access Point mode operation wirelessly even when you are going out. You can also operate these modes by connecting your ID-50E PLUS to a PC with the RS-MS3W software by a USB cable connected to the internet. When you are in areas with no D-STAR repeaters, create your own Access Point to access the D-STAR repeater network virtually anywhere. This enables another D-STAR radio user to communicate through the D-STAR network over the air.

Terminal Mode

Access Point Mode



*Terminal and Access Point modes are compatible with Icom RS-RP3 Gateway Software. If your D-STAR repeater is running G1 or G2 software, please contact your local Icom Distributor to upgrade software. ・ You need an Internet connection with an IPv4 Global IP address. If you use a cellular system, you need an IPv4 Global IP address assigned to your Android™ device. ・The RS-MS3W optional software is required to be installed in the PC (Download from Icom website). The RS-MS3A optional application software is required to be installed in the Android™ device (Download from Google Play™). USB cable is required. Type-A: User supplied. Type-C: OPC-2418. micro-B: OPC-2417.



Advanced Functions and Operations with an Improved User Interface

2.3″ Large Colour Display

The ID-52E PLUS is equipped with a color display. The display size is 2.3 inches, 320 × 280 pixels to achieve excellent viewability. The display background color is selectable from black and white.




Black background


White background



Bluetooth® Enabled Features

The built-in Bluetooth® unit provides a wireless hands-free operation.
You can easily connect to a smart device through Bluetooth®. The Remote Control Software, RS-MS1A for Android™ device or RS-MS1I for iOS™ device can wirelessly control the ID-52E PLUS to change operating frequencies and other settings.


DR setting display example


Text transmission display example



Efficient Operations with Waterfall Display

The waterfall display shows not only the existence of signals but also the changes of signal level in chronological order. You will have an overview of the band conditions in more detail, including busy frequencies currently used, or open frequencies not used. The band scope mode is selectable from center mode, Fixed mode and Fixed scroll mode.


Waterfall display



Chargeable with an USB Type-C™ Cable

The ID-52E PLUS features a USB Type-C™ port which is widely used in the industry, enabling USB charging. Additionally, it is a multifunctional USB port that supports PC programming, reading, and writing content to microSD cards, Terminal/Access Point mode compatibility, and CI-V control.

* A USB adapter is required for charging.

* USB PD is not supported.


USB Type-C™ port

V/V, U/U, V/U Dualwatch Including DV/DV Mode

The Dualwatch function monitors the VHF/VHF, UHF/UHF and VHF/UHF bands simultaneously*. You can quickly respond to a call from the Main and Sub bands. Two DV signals can be decoded at the same time.

* AM/AM mode Dualwatch is not possible. AM signals can be received on only the Main VFO (A band).


DV/DV mode


Terminal/DV mode



VHF/UHF Airband and FM Broadcast Receiver

Airband reception is expanded from VHF to UHF military airband (225 to 374.995 MHz). FM broadcast stations can be listened to while using the dualwatch function.

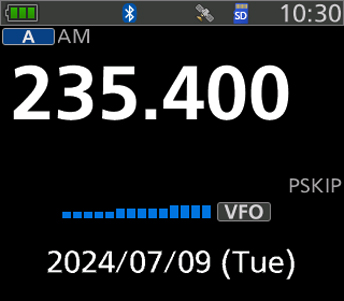

Military airband

Integrated GPS/GLONASS Receiver

D-PRS mode is supported by the internal GPS receiver for sending your location and showing received station location, distance, and direction from your current location. In addition to your location, the ID-52E PLUS displays your current Grid Square information. The GPS position data can be used for Position Auto Reply, Near Repeater Search, and GPS log functions.


GPS position with grid locator

microSD Card Slot

You can store QSO Recording, TX Voice Memory, pictures, QSOs and GPS log data. Firmware upgrades, Repeater lists and other personal settings onto a microSD card (up to 32 GB). This can be loaded into the ID-52E PLUS radio.

IPX7 Waterproof and Tough Construction

With Icom’s pioneering IPX7 waterproofing and pro-grade construction, the ID-52E PLUS is perfect for your shack or operating in harsh outdoor environments.

Other Features

  • 750 mW loud audio output power
  • DV fast data mode uses data in place of voice frames
  • QSO log in CSV data format
  • Accessories for the ID-52E/ID-50E/ID-51E/ID-31E such as battery packs and microphones can be used
  • DV/FM near repeater search function
  • Voice recorder function
  • External DC power jack



Compare to the ID-52E and ID-50E







*Bluetooth® connection has not been tested for all Bluetooth® compatible devices with this product. This does not guarantee that all devices will work with this product.
