IC-F5330D / IC-F6330D

Description

IC-F5330D VHF/IDAS DIGITAL
IC-F6330D UHF/IDAS DIGITAL

The IC-F5330D/F6330D series offers a flexible and unique installation solution that allows the main unit (RF unit) and remote‑controller (PoE PD, Power over Ethernet Powered Device) to be connected using an Ethernet cable, and can be extended up to 100 m, 328 ft with an inexpensive Cat 5e LAN cable. The remote-controller uses a Commandmic™ with excellent operability and a high contrast black LCD.

Flexible Installation Using an Ethernet Cable Between the Main Unit and Commandmic™

Loud and Intelligible Audio Even in Noisy Environment

Input /Output Interface for External Devices with Optional D-SUB Accessory Cable

Dual Mode Operation – IDAS™ Digital Mode and Analogue FM Mode

400 – 520 MHz Wide Frequency Coverage (IC-F6330D UHF version)

General Features

136–174, 400–520 MHz versions
128 Channels / 8 Zones

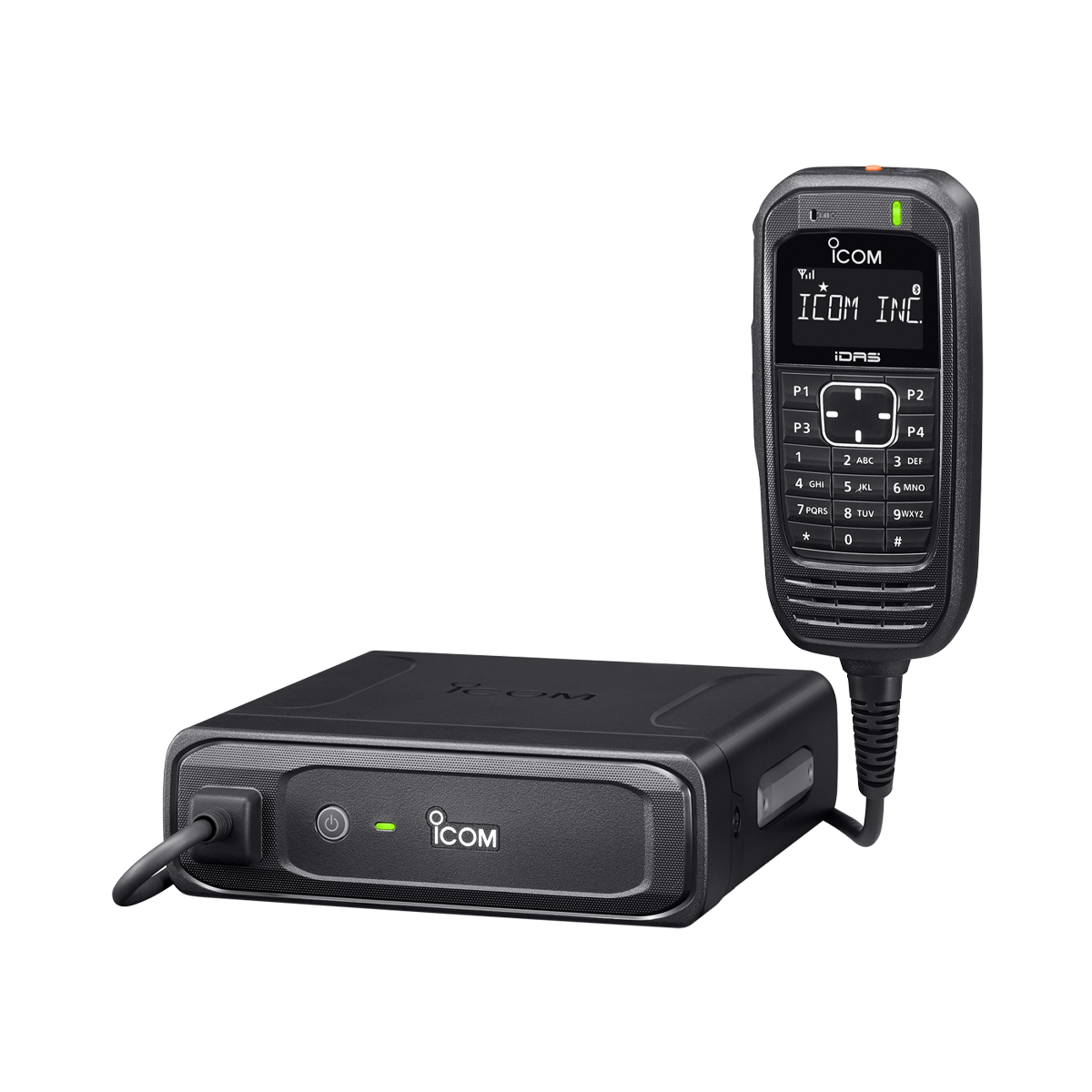

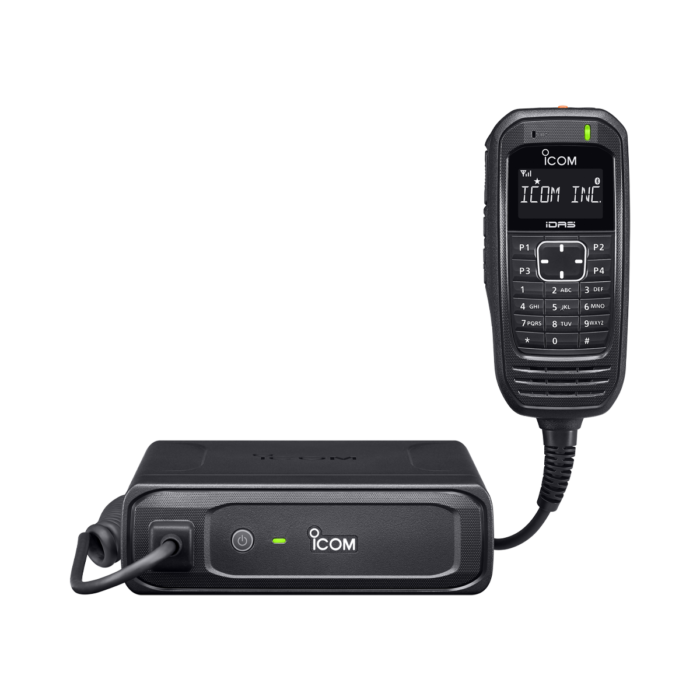

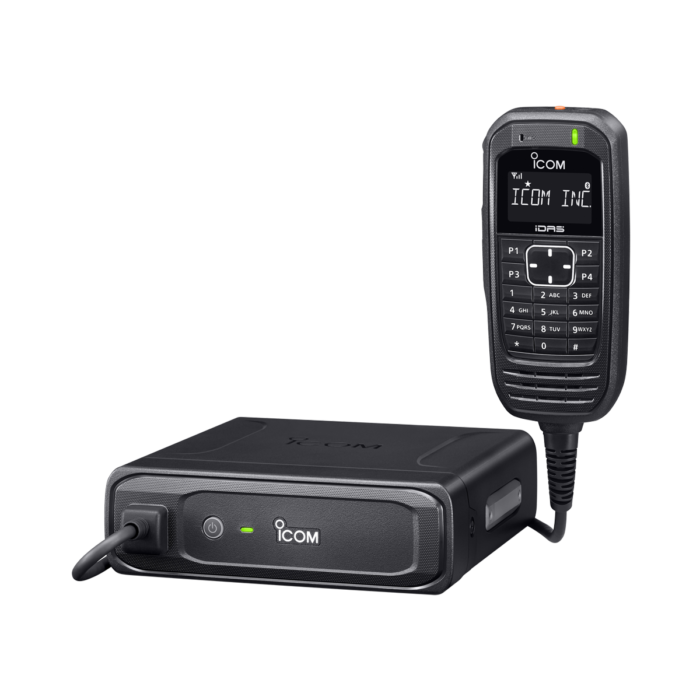

Two-piece configuration – Commandmic™ + black box main unit
Commandmic™ is powered from the main unit through an Ethernet cable*
* Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied).
High contrast, wide viewing angle, black background display on the Commandmic™
1700 mW (typical) audio output from the Commandmic™
MIL-STD-810 G shock, vibration, temperature and more
IPX4 water splash resistance for the Commandmic™
DTMF autodial memories capability

Operating Mode

NXDN™ conventional
NXDN™ Type-D single-site trunking
NXDN™ simulcast
NXDN™ multi-site conventional over IP network
Analogue mode

Digital Functions (Voice and Data)

PTT ID and ANI
Over-the-Air Alias (OAA) displays the caller’s name without programming
Individual, Group and All call
Late entry for Group call
Status call and Polling call
Short data messages
Call alert
Radio check (RX only)

Analogue Functions

CTCSS and DTCS tone
2-Tone and 5-Tone
MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
BIIS PTT ID transmission

Security and Safety

Digital voice scrambler
Emergency call and Lone worker
Remote monitor (RX)
Radio Kill, Stun and Revive (RX)

Scan Functions

Priority scan monitors one or two priority channels while scanning non-priority channels
Voting scan automatically selects the optimal repeater site

Hardware Features

Set an IP address for main unit and Commandmic™
GPS receiver connection with optional ACC cable

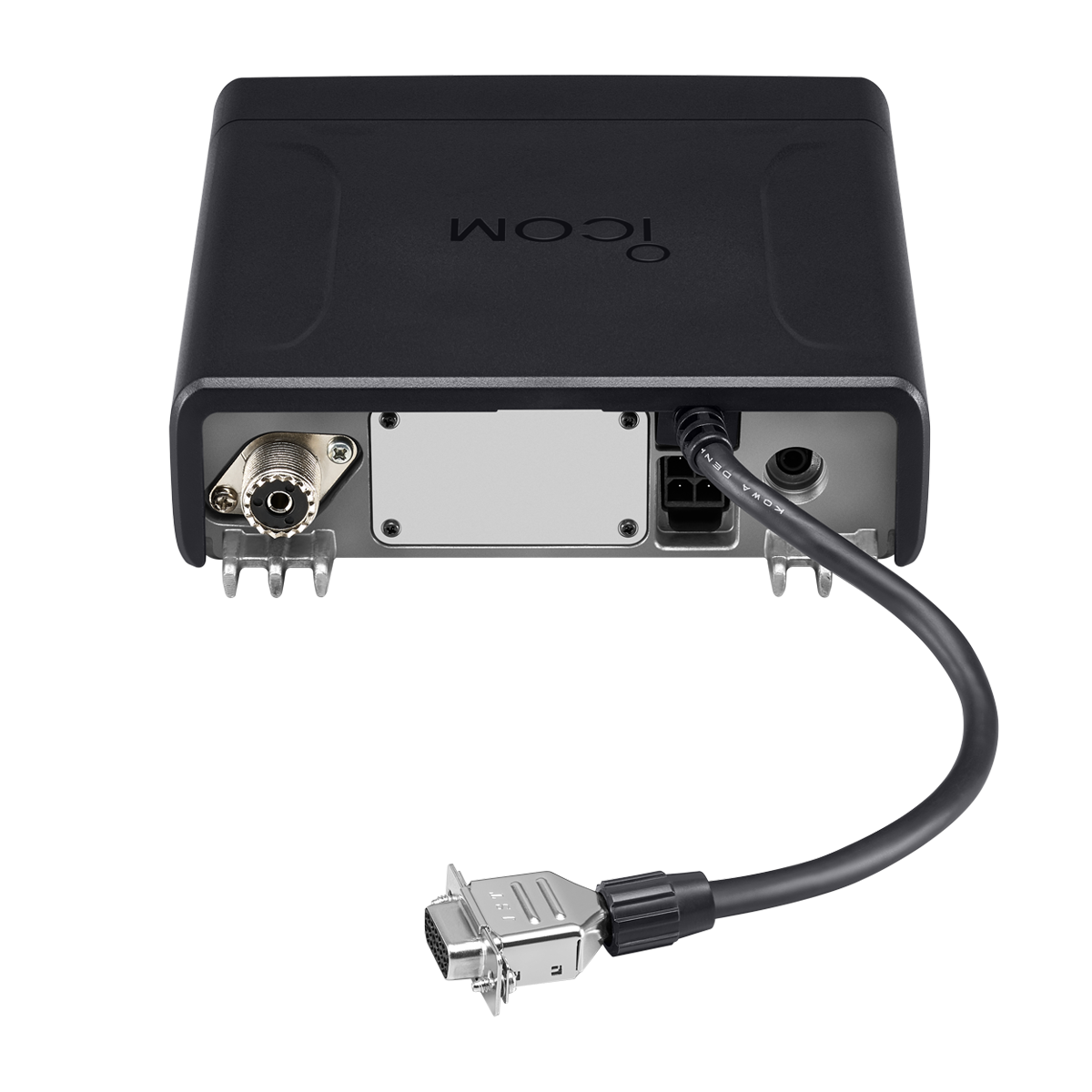

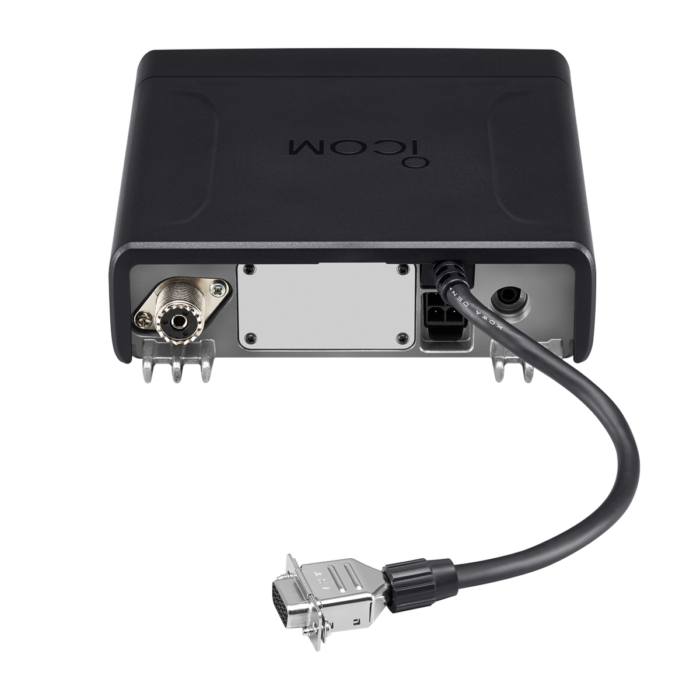

Optional D-SUB connector, OPC-2078/OPC-1939, for external PTT, channel, horn, ignition switch, and dimmer control, according to programming*
* No digital modulation “IN” when using accessory cables.

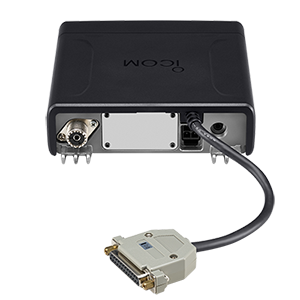

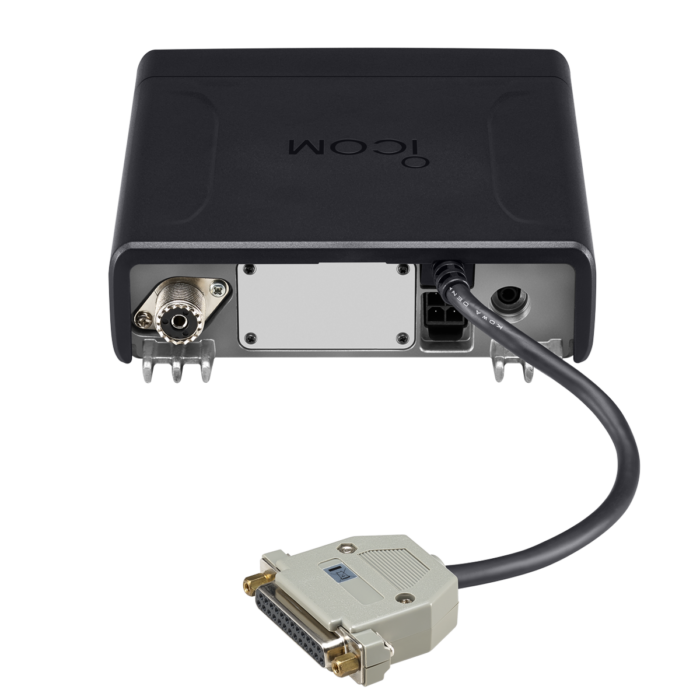

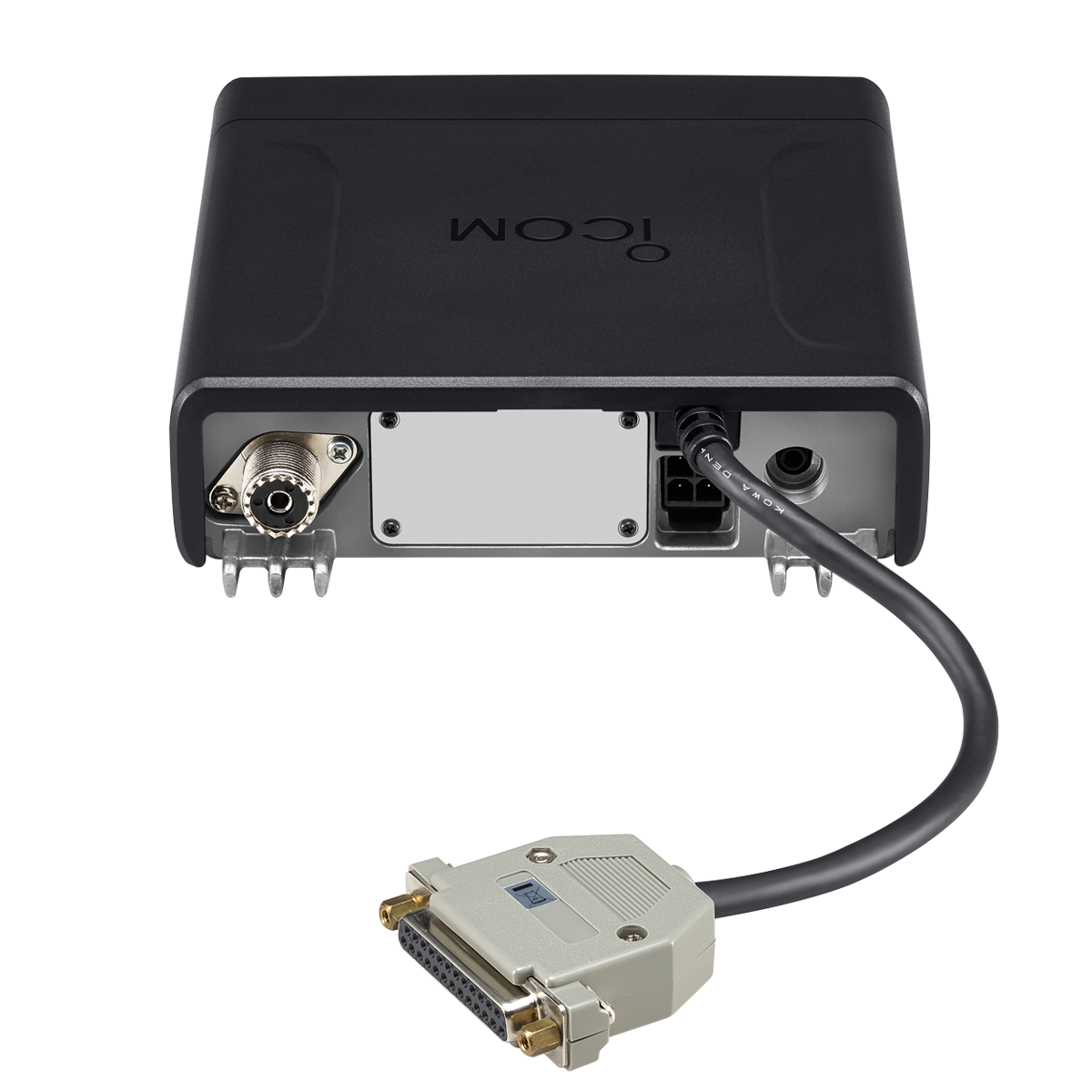

Optional OPC-2078 installation image

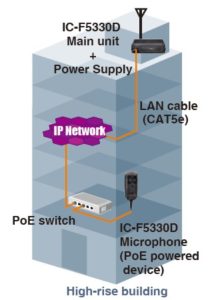

Flexible Installation with a PoE Switch and IP Network

Using a PoE (Power over Ethernet) switch (as the power supply to the microphone) and an IP network, you can easily install the IC-F5330D series into a building*. In this installation scenario, you don’t have to worry about the distance between the main unit and the Commandmic™. Also, as the main (RF) unit can be installed close to the antenna, cable loss is kept to a minimum.
* In-building usage is not available in some countries.

Supplied Accessories
