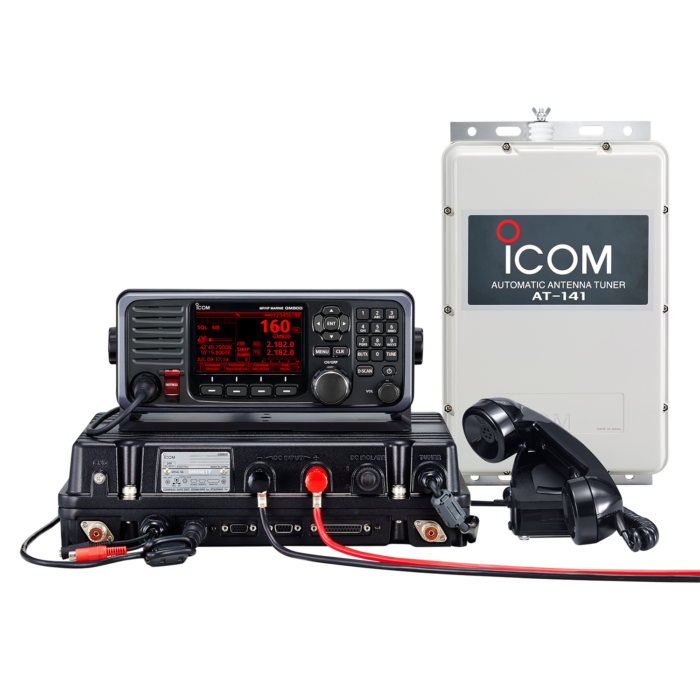

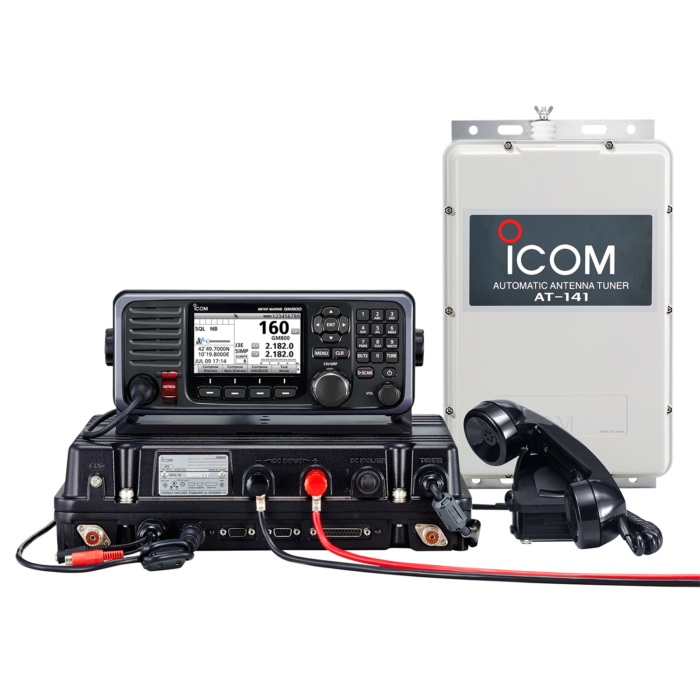

GM800

Out of stock

MF/HF MARINE TRANSCEIVER

Reliable Performance for MF/HF Long Distance Communication

Description

Satisfies SOLAS Carriage Requirements
The GM800 meets the GMDSS (Global Maritime Distress and Safety System) MF/HF radio requirements as required for SOLAS regulated commercial vessels engaging in international voyage. The radio meets the MED, “wheel mark” requirements for European merchant ships.

Meets Strict Environmental Requirements
The GM800 has passed rigorous environmental testing and quality assurance processes. The radio is designed to provide reliable operation and long-lasting durability under harsh maritime environments. In fact, the controller has IPX7 protection (1 m depth of water for 30 minutes).

Meets ITU-R M.493-15 Class A DSC

DSC Task mode screen

The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. A total of 100 MMSI members for DSC calls can stored with a 10-character ID name. The DSC Multitask function shows up to seven DSC procedures. The GM800 is also capable of sending a distress relay call.

Bridge Alert Management (BAM) Function
The Bridge Alert Management (BAM) function enables the bridge team to devote full attention to the safe operation of the vessel and to immediately identify any alert situation. The GM800 can be connected to the Central Alert Management (CAM) system and transfer BAM sentences through the IEC 61162-1 interface. It complies with the IEC 62923-1 and IEC 62923-2 standards.

4.3 inch Wide Viewing Angle Colour Display

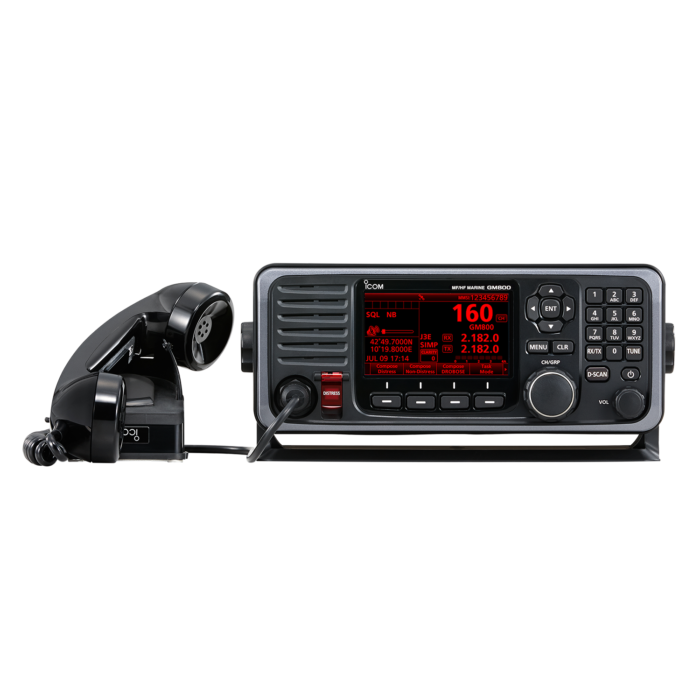

The 4.3 inch colour TFT LCD provides almost 180 degree wide viewing angle and displays high resolution characters and function icons. Even when the radio is installed to the instrument panel, the operator can clearly recognize the display information from various viewing angles. The night mode display ensures good readability in low light conditions.

Provides Loud, Clear Audio
By adopting a new waterproof paper speaker cone, the speaker provides superior sound quality and a flat frequency response with a wide frequency range.

Unified Design User Interface

The GM800 (MF/HF) and GM600 (VHF) have a unified design and offer consistent operation. A combination of the directional keypad and soft keys provides simple operation. Most used functions are assigned to soft keys (at the bottom of the display) for quick one push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.

Other Features
Remote Distress alarm / Printer connector (Centronics IEEE1284) / IEC 61162-1 interface for GNSS receiver / Output power: 150 W* PEP into 50 Ω (at radio terminal) / Built-in 24 V DC-DC converter

* 125 W (4.0–27.5 MHz) (at tuner-output), 85 W (1.6–3.999 MHz) (at tuner-output)

Supplied Accessories
HS-98 handset / Mounting bracket kit
