GMDSS VHF TRANSCEIVER with CLASS A DSC
The Latest GMDSS Functionality
in a Very User-Friendly Package
GM600
Out of stock
The Latest GMDSS Functionality
Description
GMDSS VHF Radio with Class A DSC
The GM600 is a GMDSS (Global Maritime Distress and Safety System) VHF radiotelephone which can be used as a part of GMDSS system equipment required by SOLAS or many domestic maritime regulations. When installed with the GM800 MF/HF radio, GM600 and GM800 radios provides an ideal GMDSS VHF, MF and HF radio station.
Meets Strict Environmental Requirements
Corrosion resistance coating of the rear panel.
The GM600 has passed rigorous environmental testing and quality assurance process. The GM600 is designed to provide reliable operation and long-lasting durability under harsh maritime environments.
In fact, the front panel has IPX7 protection (1m depth of water for 30 minutes) and the rear panel has corrosion resistance coating.
Meets ITU-R M.493-13 DSC
The built-in DSC provides automated distress and safety communication. The dedicated DSC watch-keeping receiver continuously monitors the DSC calling channel (CH70). A total of 100 MMSI numbers for DSC call (Individual ID: 75, Group: 25) can be stored with a 10-character ID name. Using the DSC Task mode provides straight-forward DSC operation.
DSC Task Mode Operation Example
When receiving a DSC call, a pop-up window appears. Push [Accept] button to send the acknowledgement to the calling station.
After sending or receiving a DSC call, the radio enters the DSC Task mode. Push [Next Task] button to select an other task. Up to 7 tasks can be stored.
4.3 inch Wide Viewing Angle Colour TFT LCD
The 4.3 inch colour TFT LCD provides almost 180 degree very wide viewing angle and displays high resolution characters and function icons. Even when the radio is installed to the instrument panel, the operator can clearly recognize the display information from various viewing angle. The night mode display ensures good readability in a dark place.

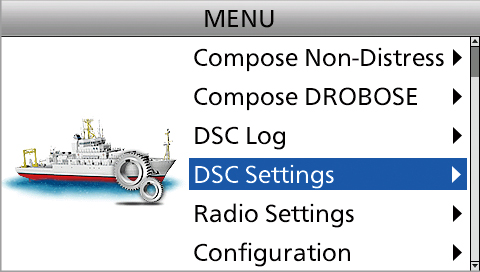

Menu screen

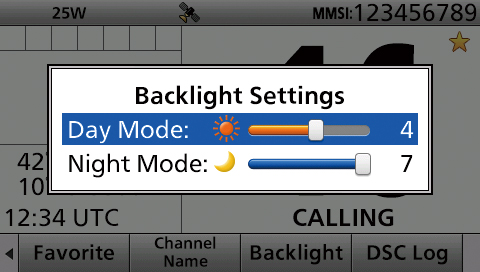

Backlight settings screen

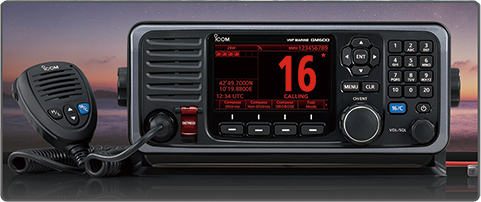

Night mode
Provides Loud, Clear Audio
The GM600’s internal speaker enhances intelligibility of received calls. By adopting a new waterproof paper speaker cone, the speaker provides superior sound quality with a wide frequency range and a flat frequency response. In addition, the radio delivers powerful 10 W audio when connected to an external speaker.
Intuitive User Interface
A combination of the directional keypad and soft keys provides simple operation. The main 12 functions are assigned to soft keys (at the bottom of the display) and toggled with the left and right keys. The clearly labelled keypad provides straightforward entry. The CH16 button offers one-touch access to the CH16.

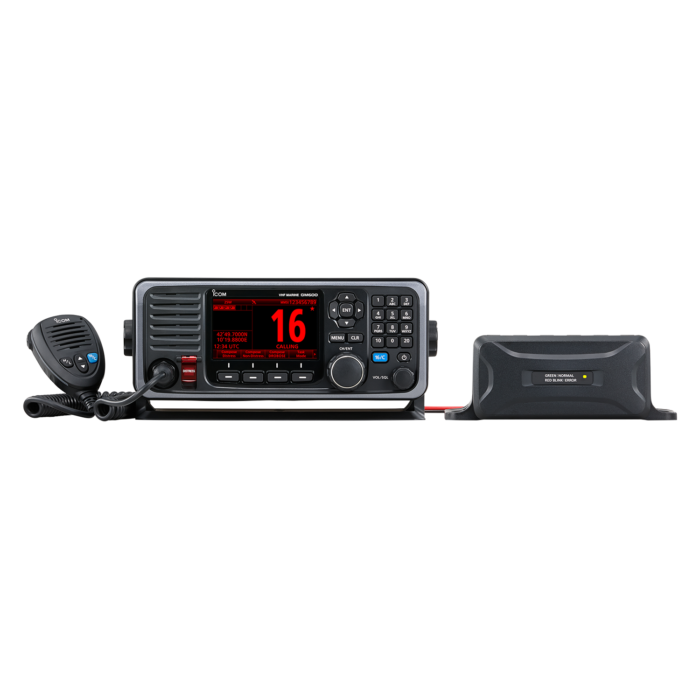

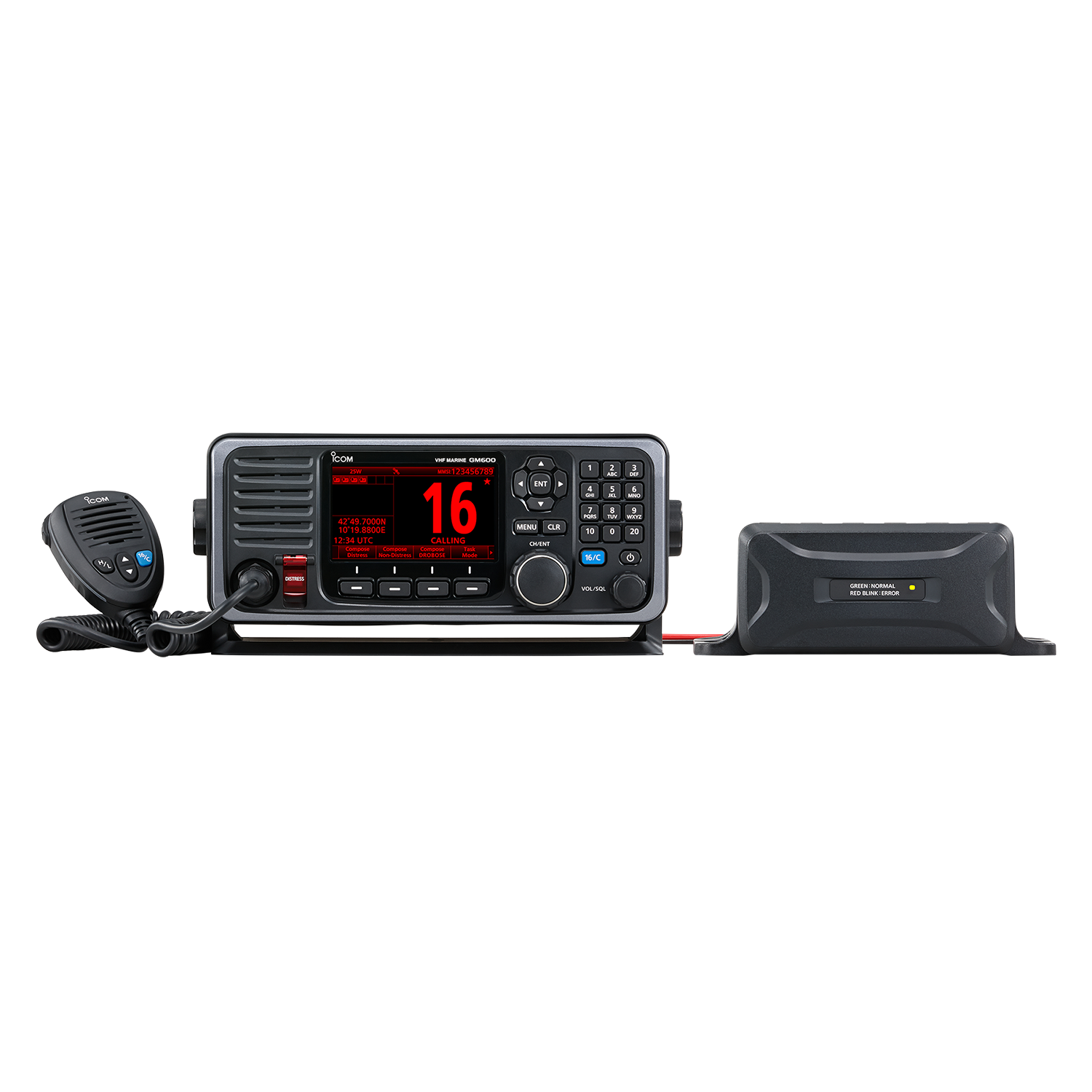

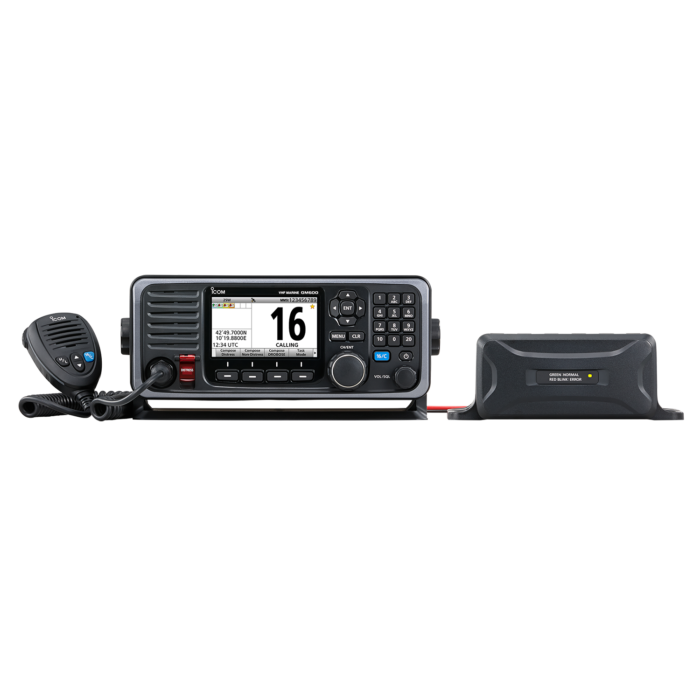

DC-DC Converter PS-310
PS-310 DC-DC converter
The optional DC-DC converter PS-310 supplies a stable 12.6 V of power to the GM600 from either a 12 V or 24 V power source (depending on version) and provides a floating ground connection. The PS-310 protects the radio from momentary power interruption. The PS-310 must be used with the GM600 for MED certification compliance.
Other Features
– IEC 61162-1 interface for GNSS receiver
– Supports new four-digit marine channels* effective from January 1st, 2017
* Following additional channels can be used: 1078, 2078, 1019, 2019, 1079, 2079, 1020 and 2020.
Supplied Accessories
Hand microphone, HM-214V / DC power cable / Mounting bracket kit
Further information can be found in the download area
